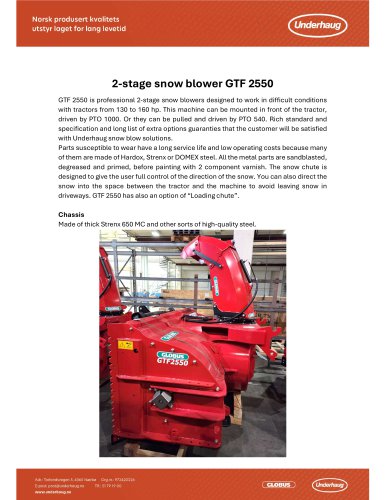

Norsk produsert kvalitets utstyr laget for long levetid GTF 2550 is professional 2-stage snow blowers designed to work in difficult conditions with tractors from 130 to 160 hp. This machine can be mounted in front of the tractor, driven by PTO 1000. Or they can be pulled and driven by PTO 540. Rich standard and specification and long list of extra options guaranties that the customer will be satisfied with Underhaug snow blow solutions. Parts susceptible to wear have a long service life and low operating costs because many of them are made of Hardox, Strenx or DOMEX steel. All the metal parts are sandblasted, degreased and primed, before painting with 2 component varnish. The snow chute is designed to give the user full control of the direction of the snow. You can also direct the snow into the space between the tractor and the machine to avoid leaving snow in driveways. GTF 2550 has also an option of “Loading chute”. Adr.: Torlandsvegen 3, 4365 Naerbo Org.nr.: 972420026 E-post: [email protected] Tlf.: 51 79 19 00

Norsk produsert kvalitets utstyr laget for long levetid Auger consists of Right auger screw (140257), Left auger screw (140145) and transmission in between. Auger screw is made of HARDOX 450 and STRENX 650 MC. Wear skids and wear blades (130085, 500971) Wear blades, 10mm, HARDOX 450 Wear plates R + L,10mm, HARDOX 500

Wear skid large rear (126510) Tow hook (500870) 3-Point adapter, can be mounted in front or behind the snow blower. Fan (129663) Diameter 850 mm, made of HARDOX 450, DOMEX 650 and Strenx 650 MC

Norsk produsert kvalitets utstyr laget for long levetid Gearbox (129923) is in the centre, connected to screws with automatic couplings for R (129724) and L (129723) sides. Hardox in my body® “A product that uses Hardox® wear plate to perform better, carry more payload, weigh less and last longer” - SSAB*. * SSAB is a Nordic and US-based steel company. SSAB offers value added products and services developed in close cooperation with its customers to create a stronger, lighter and more sustainable world. SSAB has employees in over 50 countries. SSAB has production facilities in Sweden, Finland...

Norsk produsert kvalitets utstyr laget for long levetid Globus GTF 2550 is a two-stage snow blower suitable for tractors from 130 hp up to 160 hp. The Globus GTF 2550 is designed to handle the most difficult snow conditions. The blower is built on a robust main frame made of high-strength steel. The chute has a rounded shape, making snow passage smooth and efficient. Hydraulic swing and folding are standard, allowing the snow to be directed in the desired direction. All screws on the moving parts of the chute are equipped with grease fittings to ensure a longer lifespan. The chute is foldable,...

Norsk produsert kvalitets utstyr laget for long levetid Standard specification - the chute with hydraulic swing and folding is standard, allowing the snow to be thrown in the desired direction. Upper flap with standard bend. - upper flap with standard bend (124153) Adr.: Torlandsvegen 3, 4365 Naerbo Org.nr.: 972420026 E-post: [email protected] Tlf.: 51 79 19 00

Norsk produsert kvalitets utstyr laget for long levetid Two wheels (124949), sized 125/75-R8, have continuous adjustment. If the wheel sinks into the snow, it works in combination with the skid shoe, providing support for the blower. Extra skids set. They can be mounted instead of wheel set.

Spring release kit (140566) mounted on standard rod. With this option snow blower is not rigid on 3-point hitch. It allows to go over obstacles such as manhole cover when snow cleaning streets Edge cutters right side (130567) and left side (130566). Hight 150cm. Plus 20cm of working width from each side. Hydraulic edge cutter Right and/or Left side Hydraulic edge cutter can be mounted on right (129907) or left (129913), or both sides. Each hydraulic edge cutter adds 27 cm of working withd.

Norsk produsert kvalitets utstyr laget for long levetid Wear pad R+L Wear pad (129702) made of HARDOX 450, 20 mm thick. Gearbox for 1000 rpm Is used when reversing/heavy duty front (140603). Actual with Valtra TwinTrac reverse drive system. Adr.: Torlandsvegen 3, 4365 Naerbo Org.nr.: 972420026 E-post: [email protected] Tlf.: 51 79 19 00

Norsk produsert kvalitets utstyr laget for long levetid Upper flap with extra bend (500311) can be mounted instead of upper flap with standard bend 124153. 3-year warranty The 36 months warranty covers the repair of defects and faults in the Snow Blower or its components. This includes faults that can be traced back to manufacturing or material defects. The warranty does not cover wear parts, including the PTO shaft and damages due to improper use or failure to follow the instructions in the user manual. At least one service must be performed at the dealer every year. This service must be carried...
