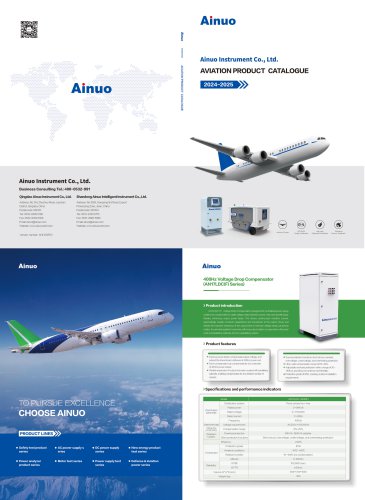

Ainuo Instrument Co., Ltd. AVIATION PRODUCT CATALOGUE Ainuo Instrument Co., Ltd.Business Consulting Tel.: 400-0532-991 Qingdao Ainuo Instrument Co., Ltd. Shandong Ainuo Intelligent Instrument Co., Ltd. Address: No.134, Zhuzhou Road, Laoshan District, Qingdao, China Email: [email protected] Website: www.ainuoworld.com Address: No.1069, Gangxing 3rd Road, Export Processing Zone, Jinan, China Email: [email protected] Website: www.ainuoworld.com Ainuo Ainuo 400Hz Voltage Drop Compensator (AN17LDC(F) Series) > Product introduction AN17LDC (F) Voltage Drop Compensator is designed for centralized power supply systems to compensate for cable voltage drops between power units and aircraft plugs, thereby enhancing output power factor. This device continuously monitors current, automatically serially connects capacitance and inductance to the output circuit, and offsets the inductive reactance of the output lines to minimize voltage drops caused by cables. It is primarily applied in scenarios with long output cables, in conjunction with power units and paralleling cabinets, to form a paralleling system. ★ Improve power factor, compensate output voltage, and extend the transmission distance of 400Hz power unit. ★ Each compensator can compensate for two channels of400Hz power output. ★ Flexible expansion of output channels coupled with paralleling cabinets, enabling compensation for any desired number of outputs. ★ Sound protection functions: short circuit, overload, overvoltage, undervoltage, and overheating protection. ★ Ultra-wide compensation range of 6%-20%. ★ Adjustable overload protectbn within a range of 30~ 180kva, providing convenience and flexibility. ★ Protection grade of IP55, meeting outdoor installation requirements. > Specifications and performance indicators \ • Safety test product series • Power analyzer product series • AC power supply s eries • Motor test series • DC power supply series • Power supply test series • New energy product test series • Defense & Aviation power series
