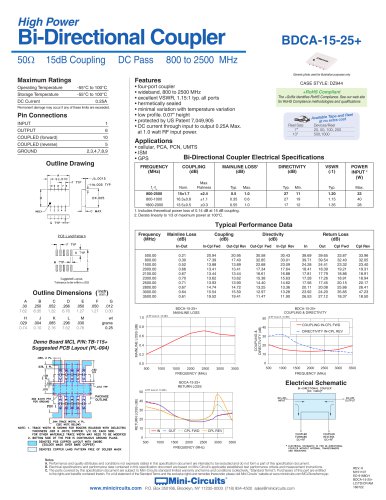

BDCA-15-25+
1Pages

Maximum Ratings Permanent damage may occur if any of these limits are exceeded. COUPLED (forward) COUPLED (reverse) GROUND Suggested Layout, Tolerance to be within ±.002 Demo Board MCL P/N: TB-115+ Suggested PCB Layout (PL-004) | DENOTES COPPER LAND PATTERN FREE OF SOLDER MASK • four-port coupler • excellent VSWR, 1.15:1 typ. all ports • hermetically sealed • minimal variation with temperature variation • DC current through input to output 0.25A Max. at 1.0 watt RF input power. • gps Bi-Directional Coupler Electrical Specifications +RoHS Compliant The +Suffix identifies RoHS Compliance. See our web site for RoHS Compliance methodologies and qualifications Available Tape and Reel 1. Includes theoretical power loss of 0.14 dB at 15 dB coupling. 2. Derate linearly to 1/3 of maximum power at 100°C. Typical Performance Data Frequency In-Cpl Fwd Out-Cpl Rev Out-Cpl Fwd In-Cpl Rev COUPLING & DIRECTIVITY « ELECTRICAL SCHEMATIC IS FOR BI-DIRECTIONAL COUPLER WITHOUT INTERNAL TRANSFORMERS AND RESISTORS. A. Performance and quality attributes and conditions not expressly stated in this specification document are intended to be excluded and do not form a part of this specification document. B. Electrical specifications and performance data contained in this specification document are based on Mini-Circuit's applicable established test performance criteria and measurement instructions. C. The parts covered by this specification document are subject to Mini-Circuits standard limited warranty and terms and conditions (collectively, ''Standard Terms11); Purchasers of this part are entitled to the rights and benefits contained therein. For a full statement of the Standard Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits' website at www.minicircuits.com/MCLStore/terms.jsp www.minicircuits.com P.O. Box 350166, Brooklyn, NY 11235-0003 (718) 934-4500 sales@minicircuits.com
