Belt
Belt
The rapid folding door, known as the Belt, is designed for medium to large-sized bays, offering high wind resistance. It is suitable for various applications such as hangars, garages, compost sites, unloading docks, and more.
Specifications
- Maximum dimensions: 12000 mm (width) x 10000 mm (height)
- Wind resistance: Class 1 to Class 4 (special execution)
- Operating speed: Up to 1.0 m/s
- Temperature range: -30°C to +70°C
- Frame materials: Galvanised steel, stainless steel (AISI 304-316), powder-coated options
- Curtain fabric: PVC, 900g/m², thickness 0.9 mm
- Control cabinet: IP55 metal, IP66 stainless steel, PVC options
- Motor position: Frontal or lateral (LH/RH)
- Safety devices: Multibeam barrier, dead man logic, flashing light, microwave radar
Features
- High wind resistance and energy-saving capabilities
- Heavy-duty gear motor drive unit
- Fully automatic operation with IP67 multi-point light barrier
- Easy installation with plug & play pre-wiring
- Reduced maintenance and high reliability
Optional Features
- Slope-shaped curtain for surface adjustments
- Various curtain standard colors available
- Emergency opening options: Manual rod, counterbalance, UPS buffer battery
- Control system options: Logic board with contactors or inverter-based
- Positioning system: Mechanical limit switches or absolute encoder
Applications
- Suitable for both indoor and outdoor use
- Ideal for areas requiring high wind resistance and energy efficiency
Contact Information
IPR Srl - Via Statale Asti-Alba, 6/B - 12040 Govone (Cn) - Italy | +39 0173 212052 | [email protected] - ipritalia.com
Note
IPR S.r.l. reserves the right to improve, modify, or vary the technical contents. Rev. 02.2025
Catalog excerpts

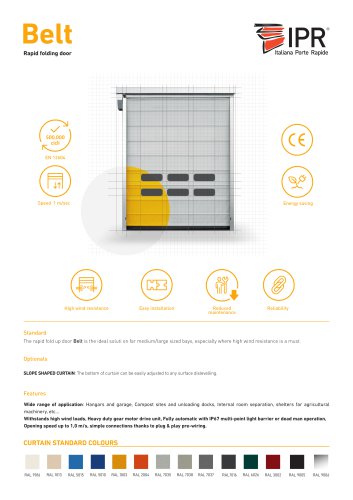

Belt Rapid folding door Energy saving High wind resistance Easy installation Reduced maintenance Standard The rapid fold up door Belt is the ideal soluti on far medium/large sized bays, especially where high wind resistance is a must. Optionals SLOPE SHAPED CURTAIN: The bottom of curtain can be easily adjusted to any surface dislevelling. Features Wide range of application: Hangars and garage, Compost sites and unloading docks, Internal room separation, shelters far agricultural machinery, etc... Withstands high wind loads, Heavy duty gear motor drive unit, Fully automatic with IP67 multi-point light barrier or dead man operation, Opening speed up to 1,0 m/s, simple connections thanks to plug & play pre-wiring. CURTAIN STANDARD COLOURS
Open the catalog to page 1
TECHNICAL DATA upon request , possibility to have door with different measurements | check any possible limitations | *** only with presence of inverter - dimensional restrictions apply | ““possibility to have reduced overall dimensions I PR Srl - Via Statale Asti-Alba, 6/B - 12040 Govone (Cn) - Italy | +39 01 73 212052 | [email protected] - ipritalia.com IPR S.r l. reserves the right to improve, modify or vary the technical contents exposed.. Rev. 02.2025
