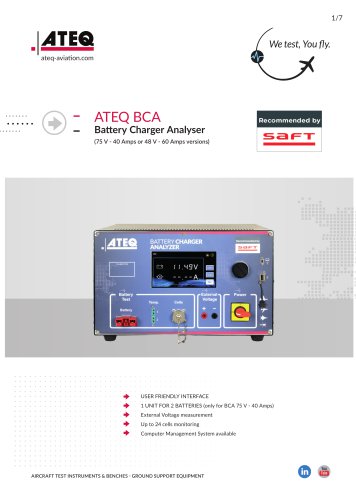

AJE€t ateq-aviation.com (75 V - 40 Amps or 48 V - 60 Amps versions) ^ USER FRIENDLY INTERFACE ^ 1 UNIT FOR 2 BATTERIES (only for BCA 75 V - 40 Amps) ^ External Voltage measurement ^ Computer Management System available AIRCRAFT TEST INSTRUMENTS & BENCHES - GROUND SUPPORT EQUIPMENT

MCMS SOFTWARE FEATURES FUNCTION CHARACTERISTICS Charging phase - Constant or variable Intensity/Voltage - Adjustable from PC, profile, EXCEL file - On I constant, or variable, limit U max, -AV, time, temperature min and max, AT°/At - On U constant, or variable, limit I min, times AI (%), temperature min and max, AT°/At - Temp. protection probe type K, adjustable - Elements voltage measurements and stop or stand by on elements voltage Discharging phase - Constant or variable Intensity - Adjustable from PC, profile, EXCEL file - U min limit, time, temp. min and max, AT°/At - Temp. protection probe...

ELECTRICAL SPECIFICATIONSAVAILABLE ACCESSORIES General Electrical characteristics Sector input: 100-240 VAC Monophased Temperature of use: 0-50°C (0-20°C without derating) Storage temperature: -20 to +70°C Cooling: By forced ventilation PN EZ-0232 version: Dimension: 380 x 440 x 265 mm Weight: ~26 kg Power supply characteristics at constant voltage (charging) Output voltage: 0-75 VDC per channel | 0-48 VDC per channel Regulation: 0.1 % for a variation of I from 10 to 90 % Stability: 0.1 % at full charge for 8H Power supply characteristics at constant current (charging) Regulation: 0.1 % for a...

[ED-0073] Thermocouple probe type battery cells connection (25 pieces) battery cells connection (25 pieces) battery cells connection (25 pieces) [T1-0034] BCA Power ouptut cable battery cell connection (25 pieces) [T1-0309] BCA Power ouptut cable - 2m - [T1-0269] BCA Power ouptut cable - 5 m - 2x16mm2 + 2x0.5mm2 GRID GPE80 to Eyelet M8 l PITOT TEST l COBRA PITOT ADAPTERS, KITS & COVERS l LEAK TEST l BATTERY TEST l ELECTRICAL TEST

[T1-0132] BCA Power ouptut cable extension- [T1-0217] BCA Cell measurement cable [T1-0268] BCA Cell measurement cable 24 Souriau 26 pin to Banana plugs [T1-0375] BCA Cell measurement cable [T1-0376] BCA Cell measurement cable Souriau 26 pin to Banana plugs [T1-0272] BCA Power ouptut cable extension- (Counter-plug used in case of charging only one battery with cable T1-0211) l PITOT TEST l COBRA PITOT ADAPTERS, KITS & COVERS l LEAK TEST l BATTERY TEST l ELECTRICAL TEST

[T1-0211] BCA Dual connector Battery cable - 2x 16mm2 [EG-0400] External probes for Voltage measurement (Black and Red 4mm2) - 1.5m GRID GPE80 to REBLING-REBLING (EC-0528 Counter-plug mandatory in case of charging only one battery). Not included [L2-0010] MCMS - Multi Channel [L2-0013] SCSS - Single Channel Setting Management Software [T1-0043_3m] Cable RS485 SubD 9 pins [T1-0043] Cable RS485 SubD 9 pins [EZ-0361] Remote Cell Measurement Unit l PITOT TEST l COBRA PITOT ADAPTERS, KITS & COVERS l LEAK TEST l BATTERY TEST l ELECTRICAL TEST

A FULL RANGE OF SERVICES DEDICATED TO YOUR PERFORMANCE OUTSTANDING SERVICE Global service & calibration support, 2-day calibration Multi-brand Calibration Service Demo unit rental Training Maintenance & Repair Free loan period Multi-brand Calibration Service More information & Local contact on ateq-aviation.com Deep Discharge Up to 24 cells with a 1 Ohm resistance. Cells Measurement Cover to measure up to 24 Cells voltage. Souriau connector available on the front panel. Remote Cells Measurement Unit This option is designed to manage a second battery by monitoring the global voltage and cells...
