1070nm Laser diode
1070nm Laser diode
- Diode Types: Two main types are available: Fabry-Pérot (FP) and Distributed Feedback (DFB).
- Power Output: FP diodes offer 400mW in CW and 675mW in pulse mode, while DFB diodes provide 70mW in CW and 105mW in pulse mode.
- Wavelength: Both types operate at 1070nm, with FP having a tolerance of ±4nm and DFB ±1nm.
- Temperature Range: Operates between 15 - 50 °C.
- Driver Types: Options include CW, Standard (Std), High Power (HP), High Pulse Performance (HPP), and Shaper.
- Pulse Duration: External pulse trigger ranges from 0.5 ns to CW, while internal pulse generator ranges from 0.5 ns to 500 ns.
- Temporal Jitter: Varies by driver type, with HPP offering the lowest jitter at <2 ns.
- Interface: Compatible with USB, Windows 7/10, DLLs, Hexa/Linux, Labview, and Python.
- Form Factors: Available in open or integrated versions.
- Ordering Information: Products are classified by diode type, driver type, and form factor.
Catalog excerpts

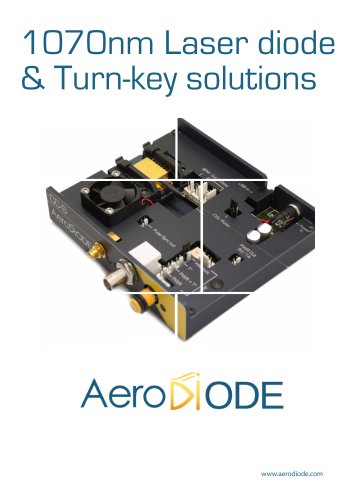

1070nm Laser diode & Turn-key solutions
Open the catalog to page 1
1070nm laser diodeChoose your own standard or DFB laser diode + turn-key Driver solution Standard or DFB laser diodes are offered as stock items or associated with a CW or pulsed Turn-Key Laser Diode Driver. st Choose your laser diode : CCS-CW CCS-std/HP INTEGRATED VERSIONS : > Open driver for HPP (High Pulse Performance) electronic Board > Open driver for CW, std and HP electronics Boards > Open driver for Shaper electronics Board > Integrated version for CW, std and HP electronics BoardInte > Open driver for HPP (High Pulse Performance) electronic Board > Integrated version for Shaper electronics...
Open the catalog to page 2
Technical SpecificationsGUI examples Mechanical examples Shaper Classification : Ordering information : Name
