AEME GSE M45D Motorized Cable Reel C28 Cable Reel

AEME GSE M45D Motorized Cable Reel C28 Cable Reel

Product catalog summary
Overview
The document provides technical specifications and features of motorized cable reels used in ground support equipment (GSE) for airports. These reels are designed to connect to ground power units and supply power to aircraft via cables of varying lengths.

Product Specifications
  • M45D Motorized Cable Reel: Features a double drum motorized chassis with a maximum cable length of 45 meters. It operates at a rated voltage of 230V and a frequency of 50/60Hz. The dimensions are 1700mm x 1030mm x 1450mm, and it weighs 650 kg. It includes various protections such as retraction limit, release limit, overcurrent, overvoltage, and overload protection. The protection degree is IP55 for the electronic section.
  • AGPW-A-45-M C28 Cable Reel: Offers a 28-meter cable with a variable frequency drive for smooth operation. It operates at a rated voltage of 400±15% and a frequency of 50/60±5Hz. The dimensions are 1050mm x 1000mm x 800mm, and it weighs 410 kg. It includes similar protections as the M45D model and operates within a temperature range of -40℃ to +60℃.

Key Features
  • Efficiency: The motorized system reduces manual labor and enhances work efficiency.
  • Protection: Built-in limit sensors prevent over-retraction or over-extension of the cable, ensuring automatic system protection during cable retraction and deployment.
  • Durability: Slip-ring technology provides reliable and durable performance in demanding airport operations.

Environmental Conditions
The equipment is designed to operate in a wide range of temperatures and humidity levels, with specific options available for extreme conditions.

Notes
Specifications are based on specific test conditions and may vary depending on the operating environment. Specifications are subject to change without prior notice.
See more

Catalog excerpts

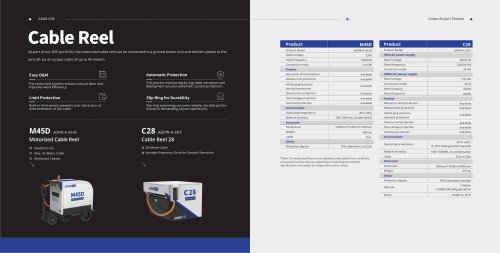

AEME GSE M45D Motorized Cable Reel C28 Cable Reel-1

Green Airport Pioneer ▲ Cable Reel As part of our GSE portfolio, the motorized cable reel can be connected to a ground power unit and delivers power to the aircraft via an output cable of up to 45 meters. Automatic Protection Retraction limit protection_|_Available Release limit protection Available The motorized system reduces manual labor and improves work efficiency. Full-process monitoring during cable retraction and deployment ensures automatic system protection. Limit Protection Slip Ring for Durability Built-in limit sensor prevents over-retraction or over-extension of the cable. Slip-ring technology ensures reliable, durable performance in demanding airport operations. M45D AGPW-A-45-M □ Variable Frequency Drive for Smooth Operation 400Hz plug insertion interlock protection *Note: The above specifications are obtained under specific test conditions. Actual performance may vary depending on operating environment. Specifications are subject to change without prior notice. Overload protection Available
