- CERTUS MINI D
CERTUS MINI D
CERTUS MINI D
The Certus Mini D is a dual antenna navigation system that integrates temperature-calibrated accelerometers, gyroscopes, pressure sensors, and magnetometers with a dual antenna GNSS receiver. It uses an AI-based fusion algorithm to provide accurate navigation data, featuring low Size, Weight, Power, and Cost (SWaP-C) and multiple communication interfaces for easy integration. It supports L1/L5 multi-constellation GNSS and is available in rugged and OEM variants.
- 10 mm RTK Positioning
- 500 Hz Output Data Rate
- High Performance Tactical Grade IMU
- Rugged & OEM Options
- L1/L5 Multi-Constellation RTK
- Low SWaP-C
- 0.1° Heading (GNSS)
- 0.1° Roll and Pitch Dual Antenna Heading
- Air: UAV Navigation, Georeferencing, Stabilisation & Pointing
- Land: Ground Vehicle Navigation, Georeferencing, Robotics Control
- Sea: AUV Navigation, ROV Navigation, Hydrography
Navigation
- Horizontal Position Accuracy: 1.5 m (0.7 m with SBAS, 0.01 m with RTK)
- Vertical Position Accuracy: 2.0 m (0.8 m with SBAS, 0.015 m with RTK)
- Velocity Accuracy: 0.05 m/s
- Roll & Pitch Accuracy: 0.1°
- Heading Accuracy: 0.1° (1 m Antenna Separation), 0.8° (Magnetic Only)
- Heave Accuracy: 5% or 0.05 m
- Output Data Rate: Up to 500 Hz
- Rugged Interface: RS232/RS422, CAN, 2x GPIO
- OEM Interface: UART, CAN, 2x GPIO
- Protocols: ANPP, NMEA, GNSS, CANOpen, 1PPS, RTCM
- Model: L1/L5 GNSS
- Supported Systems: GPS, GLONASS, Galileo, BeiDou, NavIC
- SBAS Systems: WAAS, EGNOS, MSAS, GAGAN, QZSS
- Update Rate: Up to 25 Hz
- Timing Accuracy: 30 ns RMS
- Accelerometers, Gyroscopes, Magnetometers, Pressure
- Range: ±2 g to ±2000 °/s, 30 to 125 kPa
- Noise Density: 100 ug/√Hz to 0.08 Pa/√Hz
- Operating Voltage: 5 to 36 V (Rugged), 5 V (OEM)
- Power Consumption: 1.4 W (Rugged), 0.8 W (OEM)
- Operating Temperature: -40 °C to 85 °C
- Ingress Protection: IP67 (Rugged)
- Shock and Vibration Limits: 150 g, 6 ms (IEC), 40 g, 11 ms (MIL-STD)
- Dimensions: 30 x 41 x 34 mm (Rugged), 25 x 25 x 16 mm (OEM)
- Weight: 55 grams (Rugged), 10 grams (OEM)
Catalog excerpts

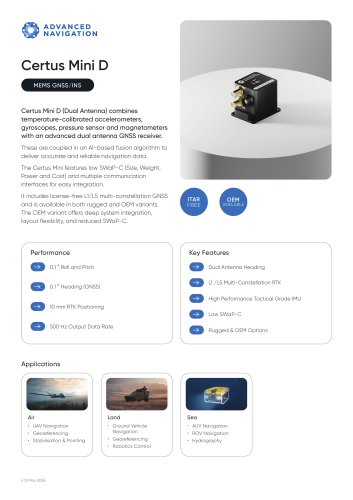

Certus Mini D MEMS GNSS/INS Certus Mini D (Dual Antenna) combines temperature-calibrated accelerometers, gyroscopes, pressure sensor and magnetometers with an advanced dual antenna GNSS receiver. These are coupled in an AI-based fusion algorithm to deliver accurate and reliable navigation data. The Certus Mini features low SWaP-C (Size, Weight, Power and Cost) and multiple communication interfaces for easy integration. It includes license-free L1/L5 multi-constellation GNSS and is available in both rugged and OEM variants. The OEM variant offers deep system integration, layout flexibility, and reduced SWaP-C. ITAR FREE Dual Antenna Heading L1 /L5 Multi-Constellation RTK High Performance Tactical Grade IMU 10 mm RTK Positioning Low SWaP-C 500 Hz Output Data Rate • Ground Vehicle Navigation • Georeferencing • Stabilisation & Pointing • Robotics Control
Open the catalog to page 1All Advanced Navigation catalogs and technical brochures

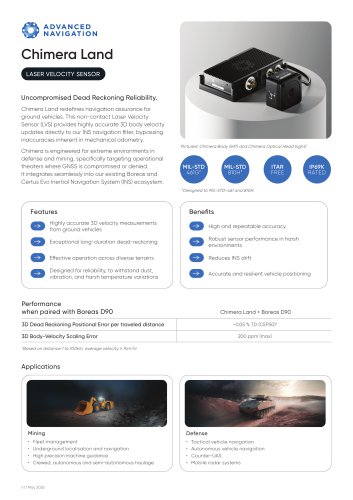

CHIMERA LAND2 Pages

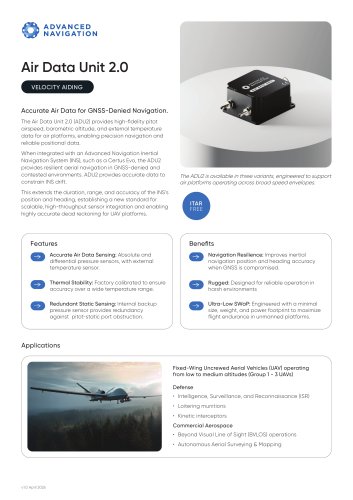

AIR DATA UNIT 2.02 Pages

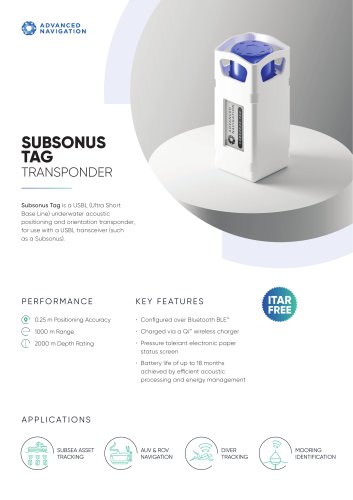

SUBSONUS TAG4 Pages

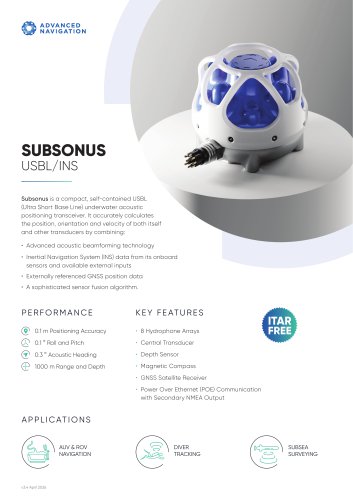

SUBSONUS2 Pages

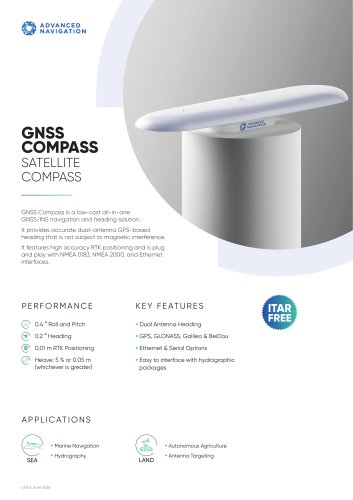

GNSS Compass2 Pages

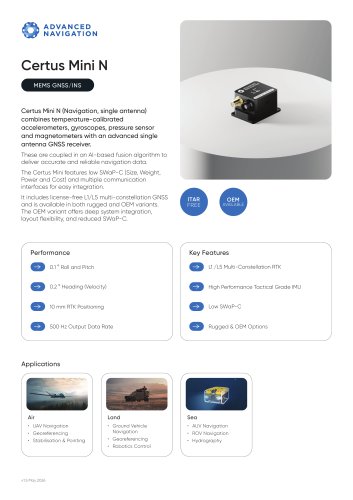

CERTUS MINI N2 Pages

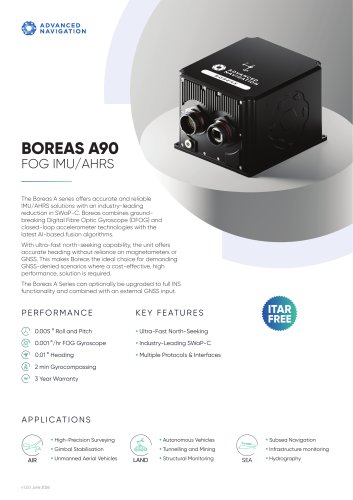

BOREAS A902 Pages
