• Land and sea applications include high-precision surveying, gimbal stabilization, unmanned aerial vehicles, autonomous vehicles, tunneling and mining, structural monitoring, subsea navigation, infrastructure monitoring, and hydrography.

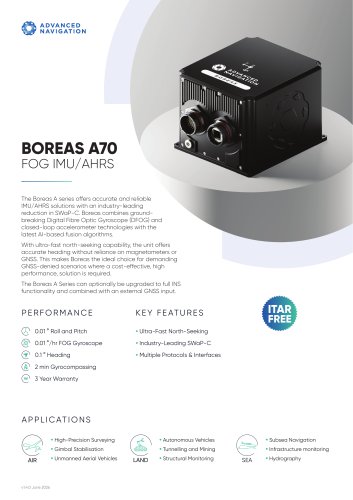

The Boreas A series provides accurate and reliable IMU/AHRS solutions with a significant reduction in Size, Weight, Power, and Cost (SWaP-C). It integrates Digital Fibre Optic Gyroscope (DFOG) and closed-loop accelerometer technologies with AI-based fusion algorithms. The unit offers ultra-fast north-seeking capability, making it suitable for GNSS-denied environments.

• Roll and Pitch Accuracy: 0.01°
• FOG Gyroscope: 0.01°/hr
• Heading Accuracy: 0.1°
• Gyrocompassing: 2 minutes
• Warranty: 3 years

• Ultra-fast north-seeking
• Industry-leading SWaP-C
• Multiple protocols and interfaces

• Roll and Pitch Accuracy: 0.01°
• Heading Accuracy: 0.1° secant latitude RMS
• Gyrocompassing Alignment: 2 minutes coarse, 10 minutes fine
• Horizontal Position Accuracy (external RTK GNSS aided): 0.01 m
• Vertical Position Accuracy (external RTK GNSS aided): 0.015 m
• Velocity Accuracy (external GNSS aided): 0.005 m/s
• Heave Accuracy: 2% or 0.02 m
• Output Data Rate: 1000 Hz
• Interface: Ethernet, RS232/RS422, CAN, 1PPS
• Operating Voltage: 9 to 36 V
• Power Consumption: 12 W
• Operating Temperature: -40°C to 75°C
• Environmental Protection: IP67
• MTBF: > 70,000 hrs
• Shock Limit: 50 g 11 ms MIL-STD-810H
• Vibration: 8 g RMS (20-2000 Hz random)
• Dimensions: 160x140x115.5 mm
• Weight: 2.7 kg

• Accelerometers Range: ± 15 g
• Gyroscopes Range: ± 490 °/s
• Pressure Range: 10 to 130 kPa
• Bias Instability: 7 µg, 0.01 °/hr, 8 Pa
• Initial Bias: < 100 µg, < 0.05 °/hr, < 50 Pa
• Initial Scaling Error: 340 ppm, 100 ppm
• Scale Factor Stability: 150 ppm, 20 ppm
• Non-linearity: 150 ppm, 10 ppm
• Cross-axis Alignment Error: < 0.001 °
• Noise Density: 40 µg/√Hz, 0.3 °/hr/√Hz, 0.4 Pa/√Hz
• Random Walk: 23 mm/s/√hr VRW, 0.005 °/√h ARW
• Bandwidth: 300 Hz, 400 Hz, 50 Hz
